TCP

The Transmission Control Protocol is the chief protocol employed on the Internet. It facilitates such mission-critical tasks as file transfers and remote sessions. TCP accomplishes these tasks through a method called reliable data transfer. In this respect, TCP differs from other protocols within the suite. In unreliable delivery, you have no guarantee that the data will arrive in a perfect state. In contrast, TCP provides what is sometimes referred to as reliable stream delivery. This reliable stream delivery ensures that the data arrives in the same sequence and state in which it was sent.

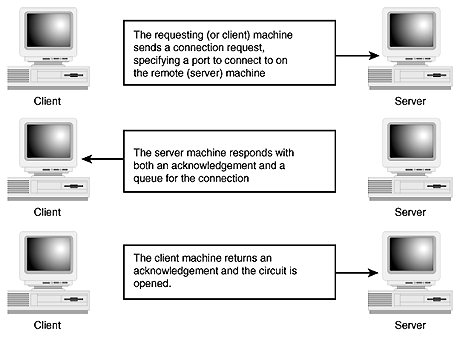

The TCP system relies on a virtual circuit that is established between the requesting machine and its target. This circuit is opened via a three-part process, often referred to as the three-part handshake. The process typically follows the pattern illustrated in



The TCP/IP three-way handshake.

After the circuit is open, data can simultaneously travel in both directions. This results in what is sometimes called a full-duplex transmission path. Full-duplex transmission allows data to travel to both machines at the same time. In this way, while a file transfer (or other remote session) is underway, any errors that arise can be forwarded to the requesting machine.

TCP also provides extensive error-checking capabilities. For each block of data sent, a numeric value is generated. The two machines identify each transferred block using this numeric value. For each block successfully transferred, the receiving host sends a message to the sender that the transfer was clean. Conversely, if the transfer is unsuccessful, two things may occur:

The requesting machine receives error information
The requesting machine receives nothing

When an error is received, the data is retransmitted unless the error is fatal, in which case the transmission is usually halted. A typical example of a fatal error would be if the connection is dropped. Thus, the transfer is halted for no packets.

Similarly, if no confirmation is received within a specified time period, the information is also retransmitted. This process is repeated as many times as necessary to complete the transfer or remote session.

You have examined how the data is transported when a connect request is made. It is now time to examine what happens when that request reaches its destination. Each time one machine requests a connection to another, it specifies a particular destination. In the general sense, this destination is expressed as the Internet (IP) address and the hardware address of the target machine. However, even more detailed than this, the requesting machine specifies the application it is trying to reach at the destination. This involves two elements:

* A program called inetd
** A system based on ports

* inetd: The Mother of All Daemons

Before you explore the inetd program, I want to briefly define daemons. This will help you more easily understand the inetd program.

Daemons are programs that continuously listen for other processes (in this case, the process listened for is a connection request). Daemons loosely resemble terminate and stay resident (TSR) programs in the Microsoft platform. These programs remain alive at all times, constantly listening for a particular event. When that event finally occurs, the TSR undertakes some action.

inetd is a very special daemon. It has been called many things, including the super-server or granddaddy of all processes. This is because inetd is the main daemon running on a UNIX machine. It is also an ingenious tool.

Common sense tells you that running a dozen or more daemon processes could eat up machine resources. So rather than do that, why not create one daemon that could listen for all the others? That is what inetd does. It listens for connection requests from the void. When it receives such a request, it evaluates it. This evaluation seeks to determine one thing only: What service does the requesting machine want? For example, does it want FTP? If so, inetd starts the FTP server process. The FTP server can then process the request from the void. At that point, a file transfer can begin. This all happens within the space of a second or so.


TIP: inetd isn't just for UNIX anymore. For example, Hummingbird Communications has developed (as part of its Exceed 5 product line) a version of inetd for use on any platform that runs Microsoft Windows or OS/2. There are also non- commercial versions of inetd, written by students and other software enthusiasts. One such distribution is available from TFS software and can be found at http://www.trumpton.demon.co.uk/software/inetd.html.


In general, inetd is started at boot time and remains resident (in a listening state) until the machine is turned off or until the root operator expressly terminates that process.

The behavior of inetd is generally controlled from a file called inetd.conf, located in the /etc directory on most UNIX platforms. The inetd.conf file is used to specify what services will be called by inetd. Such services might include FTP, Telnet, SMTP, TFTP, Finger, Systat, Netstat, or any other processes that you specify.

* The Ports

Many TCP/IP programs can be initiated over the Internet. Most of these are client/server oriented. As each connection request is received, inetd starts a server program, which then communicates with the requesting client machine.

To facilitate this process, each application (FTP or Telnet, for example) is assigned a unique address. This address is called a port. The application in question is bound to that particular port and, when any connection request is made to that port, the corresponding application is launched (inetd is the program that launches it).

There are thousands of ports on the average Internet server. For purposes of convenience and efficiency, a standard framework has been developed for port assignment. (In other words, although a system administrator can bind services to the ports of his or her choice, services are generally bound to recognized ports. These are commonly referred to as well-known ports.)
